Square D KAL361251021 125A 3P 600V K-Frame Breaker with Shunt Trip

Price: $595.00
  • SKUCM550D
In stock - 1 units available.
- +

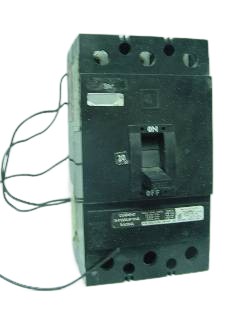

Square D KAL361251021 Circuit Breaker

Stock photo shown for reference only. You will receive a unit of the listed catalog number in the condition stated above, inspected and tested to ESP Product Standards. Cosmetic appearance may vary.

1-Year Operational Guarantee Every breaker we sell — new, surplus, reconditioned, or used — is guaranteed to operate normally for one year from date of sale. Product Standards
Same-Day Shipping In-stock orders placed before 12pm PST typically ship the same business day, with UPS tracking provided. Shipping details
30-Day Returns Return authorization available within 30 days of receipt. Return policy
Talk to a Real Person Questions about fit, condition, or availability? Call 800-664-4377. Credit terms available for approved accounts.
Found this part for less somewhere else? Surplus and reconditioned prices vary widely with scarcity and condition — tell us what you found and make us an offer. Include the catalog number and we’ll respond same business day: call 800-664-4377 or email us. Every ESP unit is tested and backed by our 1-year operational guarantee — make sure you’re comparing like for like.

Description

Square D KAL361251021 Specifications

ManufacturerSquare D / Schneider Electric
Catalog NumberKAL361251021
Base catalog numberKAL36125
TypeKAL — standard interrupting
FrameK Frame
Amperage125 A at 40°C
Voltage600V AC · 250V DC
Poles3-Pole
Phase3-Phase
MountingBolt-On / unit mount, feed-thru
Trip functionThermal-Magnetic — adjustable magnetic, LI
AccessoryFactory-installed shunt trip — the -1021 suffix. Coil rated 120/240V AC.
Related suffix-1037 is the same breaker with a 277/480V shunt trip coil
Interrupting rating42 kA @ 240V AC · 25 kA @ 480V AC · 22 kA @ 600V AC · 10 kA @ 250V DC
TerminalsLine and load side lug terminals
Weight7.38 lb
StandardsUL 489 · CSA
ConditionReconditioned — 1-year operational guarantee

This unit is sold reconditioned, inspected and tested to ESP Product Standards, and guaranteed to operate normally for one year from the date of sale.

This breaker has a shunt trip fitted. The -1021 suffix is Square D's designation for a factory-installed 120/240V AC shunt trip, which allows the breaker to be opened remotely by an external control signal — a fire alarm interface, an emergency stop, or a control system interlock. Match the coil voltage to the control circuit: -1021 is 120/240V and -1037 is 277/480V. Fitting a shunt trip after the fact is not always practical, so a factory-equipped original is worth seeking out.

The Square D K-frame is legacy product, crossed to the PowerPacT J-Frame. Shunt-trip-equipped originals are scarcer than plain breakers. ESP stocks tested reconditioned K-frame units, including other shunt-trip variants.

More Details

The four digits on the end are the reason to want this particular unit. A shunt trip lets an external signal open the breaker remotely, which is what fire alarm interfaces, emergency stop circuits and control system interlocks require. Coil voltage is the thing to match. This is the 120/240V version; the 277/480V equivalent carries a -1037 suffix instead. Ordering the wrong one means a shunt trip that will not operate on the control circuit. The base breaker is a KAL36125: K frame, 125 amperes, 600 volts, adjustable magnetic trip, lugs at both ends. The PowerPacT J-Frame is the modern crossover and needs a panel change. Reconditioned, tested, one-year operational guarantee.

What is "surplus new"?

Surplus new means the item has never been installed or put into service. It may not arrive in its original packaging, but it has never been used.

What does "reconditioned" mean?

Reconditioned items have been inspected, cleaned, and tested to confirm they operate to the manufacturer's original specifications. Every reconditioned item we sell carries a one-year operational guarantee.

How fast will my order ship?

In-stock orders placed before 12pm PST usually ship the same business day via UPS, with tracking provided.

What if I can't find the item I need?

Call 800-664-4377 — we stock thousands of obsolete and hard-to-find electrical parts that may not yet be listed online.
