Square D FHP3605016M 50A 3P 600V FHP Motor Circuit Protector

Retail Price: $1,777.44
Price: $475.00
  • SKUCM635D
In stock - 1 units available.
- +

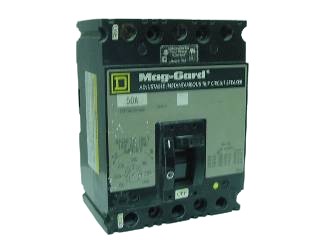

Square D FHP3605016M Circuit Breaker

Stock photo shown for reference only. You will receive a unit of the listed catalog number in the condition stated above, inspected and tested to ESP Product Standards. Cosmetic appearance may vary.

1-Year Operational Guarantee Every breaker we sell — new, surplus, reconditioned, or used — is guaranteed to operate normally for one year from date of sale. Product Standards
Same-Day Shipping In-stock orders placed before 12pm PST typically ship the same business day, with UPS tracking provided. Shipping details
30-Day Returns Return authorization available within 30 days of receipt. Return policy
Talk to a Real Person Questions about fit, condition, or availability? Call 800-664-4377. Credit terms available for approved accounts.
Found this part for less somewhere else? Surplus and reconditioned prices vary widely with scarcity and condition — tell us what you found and make us an offer. Include the catalog number and we’ll respond same business day: call 800-664-4377 or email us. Every ESP unit is tested and backed by our 1-year operational guarantee — make sure you’re comparing like for like.

Description

Square D FHP3605016M Specifications

ManufacturerSquare D
Catalog NumberFHP3605016M
Amperage50A continuous
Voltage600V AC
Poles3-Pole
Frame / TypeFHP (F-frame) Mag-Gard
MountingBolt-On
ApplicationSquare D combination motor controllers
Interrupting Rating65 kAIC @ 240V AC · 25 kAIC @ 480V AC · 18 kAIC @ 600V AC
Trip FunctionMAGNETIC ONLY — adjustable instantaneous trip
Overload ProtectionNONE — requires a separate overload relay
ListingFor use only in a combination motor controller
ConditionReconditioned — 1-year operational guarantee

This is a motor circuit protector, not a circuit breaker. It has a magnetic trip only and no thermal element, so it provides no overload protection. It is listed for use in a combination motor controller with a separate overload relay, and must not be applied as a branch-circuit breaker.

Each unit is inspected and tested to ESP Product Standards and backed by a one-year operational guarantee.

The FHP (F-frame) Mag-Gard line is out of production. ESP stocks tested reconditioned units for Square D combination motor controllers still in service.

More Details

The FHP3605016M is a 3-pole 50-ampere FHP device rated for 600V AC, built for Square D combination motor controllers. Its protection characteristic is fixed at the factory and is not adjustable in the field. Buying reconditioned keeps an existing board in service without the cost, lead time and outage window that replacing the interior would demand. A motor circuit protector is not a circuit breaker with a different label. It has no thermal element at all, which means it will not respond to a sustained overload — only to a short circuit. UL lists it exclusively as part of a combination motor controller, where a separate overload relay handles the thermal side. Installed as a branch device on its own, it leaves the load with no overload protection whatsoever.

What is "surplus new"?

Surplus new means the item has never been installed or put into service. It may not arrive in its original packaging, but it has never been used.

What does "reconditioned" mean?

Reconditioned items have been inspected, cleaned, and tested to confirm they operate to the manufacturer's original specifications. Every reconditioned item we sell carries a one-year operational guarantee.

How fast will my order ship?

In-stock orders placed before 12pm PST usually ship the same business day via UPS, with tracking provided.

What if I can't find the item I need?

Call 800-664-4377 — we stock thousands of obsolete and hard-to-find electrical parts that may not yet be listed online.
