Federal Pacific NJL622250 250A 2P 600V NJL-Frame Circuit Breaker (Challenger Label)

Price: $850.00
  • SKUCM182F
In stock - 1 units available.
- +

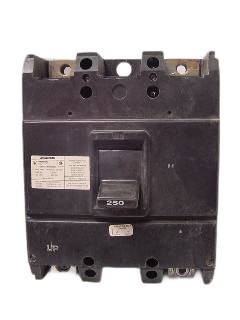

Federal Pacific NJL622250 Circuit Breaker

Stock photo shown for reference only. You will receive a unit of the listed catalog number in the condition stated above, inspected and tested to ESP Product Standards. Cosmetic appearance may vary.

1-Year Operational Guarantee Every breaker we sell — new, surplus, reconditioned, or used — is guaranteed to operate normally for one year from date of sale. Product Standards
Same-Day Shipping In-stock orders placed before 12pm PST typically ship the same business day, with UPS tracking provided. Shipping details
30-Day Returns Return authorization available within 30 days of receipt. Return policy
Talk to a Real Person Questions about fit, condition, or availability? Call 800-664-4377. Credit terms available for approved accounts.
Found this part for less somewhere else? Surplus and reconditioned prices vary widely with scarcity and condition — tell us what you found and make us an offer. Include the catalog number and we’ll respond same business day: call 800-664-4377 or email us. Every ESP unit is tested and backed by our 1-year operational guarantee — make sure you’re comparing like for like.

Description

Federal Pacific NJL622250 Specifications

ManufacturerFederal Pacific Electric / American Circuit Breaker / Challenger
LabelChallenger
Catalog NumberNJL622250
TypeNJL
FrameNJL Frame
Amperage250 A
Voltage600V AC · 250V DC (for DC, use both outside poles)
Poles2-Pole
MountingBolt-On
Trip functionThermal-Magnetic — fixed trip, LI (long-time and instantaneous)
Interrupting rating42 kA @ 240V AC · 30 kA @ 480V AC · 22 kA @ 600V AC · 10 kA @ 250V DC
TerminalsCu/Al; lug kit L34 for 125–400 A, L36 for 500–600 A; wire screw torque 275 lb-in
StandardsUL 489 (issue LP-9850) · CSA
ConditionReconditioned — 1-year operational guarantee

This unit is sold reconditioned, inspected and tested to ESP Product Standards, and guaranteed to operate normally for one year from the date of sale.

Confirm the pole count before ordering. Federal Pacific put both the pole count and the trip rating inside the catalog number: NJL622250 reads as two poles at 250 amperes, against NJL631250 which is three poles at the same rating. The two differ by one digit and by an entire phase in the panel.

Federal Pacific, American and Challenger NJL-frame breakers are out of production with no modern drop-in equivalent. ESP stocks tested reconditioned units for FPE gear still in service.

More Details

Two-pole devices at 250 amperes turn up in corner-grounded delta services and in DC applications, and they are harder to source than their three-pole siblings because most searches return the three-pole part instead. The catalog numbering on this family hides both the pole count and the trip rating in a digit string, which is how surplus listings for FPE breakers end up wrong so often. The nameplate is the only authority. Nothing currently manufactured fits an NJL opening. Reconditioned, tested, one-year operational guarantee.

What is "surplus new"?

Surplus new means the item has never been installed or put into service. It may not arrive in its original packaging, but it has never been used.

What does "reconditioned" mean?

Reconditioned items have been inspected, cleaned, and tested to confirm they operate to the manufacturer's original specifications. Every reconditioned item we sell carries a one-year operational guarantee.

How fast will my order ship?

In-stock orders placed before 12pm PST usually ship the same business day via UPS, with tracking provided.

What if I can't find the item I need?

Call 800-664-4377 — we stock thousands of obsolete and hard-to-find electrical parts that may not yet be listed online.
