Cutler Hammer KD3400F 400A 3P Molded Case Circuit Breaker

Retail Price: $1,840.99
Price: $995.00
  • SKUCM355C
In stock - 1 units available.
- +
Cutler-Hammer KD3400F Circuit Breaker

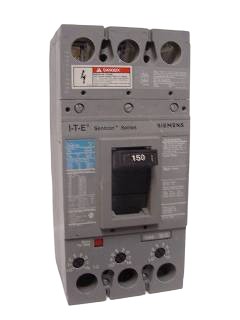

Stock photo shown for reference only. You will receive a unit of the listed catalog number in the condition stated above, inspected and tested to ESP Product Standards. Cosmetic appearance may vary.

1-Year Operational Guarantee Every breaker we sell — new, surplus, reconditioned, or used — is guaranteed to operate normally for one year from date of sale. Product Standards
Same-Day Shipping In-stock orders placed before 12pm PST typically ship the same business day, with UPS tracking provided. Shipping details
30-Day Returns Return authorization available within 30 days of receipt. Return policy
Talk to a Real Person Questions about fit, condition, or availability? Call 800-664-4377. Credit terms available for approved accounts.
Found this part for less somewhere else? Surplus and reconditioned prices vary widely with scarcity and condition — tell us what you found and make us an offer. Include the catalog number and we’ll respond same business day: call 800-664-4377 or email us. Every ESP unit is tested and backed by our 1-year operational guarantee — make sure you’re comparing like for like.

Description

Cutler-Hammer KD3400F Specifications

ManufacturerEaton / Cutler-Hammer / Westinghouse
Frame Catalog NumberKD3400F
Style1492D81G03
FamilySeries C — KD 35k
FrameK Frame, type KD
Frame Rating400 A max
Trip Unit InstalledKT3300T — 300 A
Continuous Rating300 A
Voltage600V AC / 250V DC
Poles3-Pole
MountingBolt-On
Trip functionThermal-Magnetic, LI (Long-Time and Instantaneous) — fixed thermal, adjustable instantaneous magnetic (5–10x In), interchangeable trip unit
Interrupting rating (UL)65 kA @ 240V · 35 kA @ 480V · 25 kA @ 600V · 10 kA @ 250V DC
Interrupting rating (IEC 157-1)65 kA @ 240V · 40 kA @ 415V · Uimp 8 kV
Calibration40°C
TerminalsLugs NOT included — TA400K lug kit required, sold separately
FeaturesHACR rated · reverse feed suitable · suitable for single-phase AC · use the two outside poles for DC
OriginMade in U.S.A.
ConditionNew surplus — 1-year operational guarantee


Sold reconditioned with a one-year operational guarantee — every unit is inspected and tested before shipment.

Please note the ratings: KD3400F is a 400-ampere frame. This unit is supplied with a KT3300T trip unit installed, giving a continuous rating of 300 amperes. The K-frame accepts interchangeable KT-series trip units, so the same frame can be re-rated in the field — a 400A trip (KT3400T) is available on request. Lugs are not included; a TA400K lug kit is required for termination.

More Details

The Eaton / Cutler-Hammer KD3400F is a three-pole Series C K-frame molded case circuit breaker frame rated 400 amperes maximum at 600V AC and 250V DC, supplied here with a KT3300T trip unit installed for a 300-ampere continuous rating. Interrupting capacity is 65 kA at 240V, 35 kA at 480V, 25 kA at 600V, and 10 kA at 250V DC; under IEC 157-1, 65 kA at 240V and 40 kA at 415V with an 8 kV impulse rating.

Protection is thermal-magnetic with long-time and instantaneous (LI) functions — fixed thermal, with adjustable instantaneous magnetic settable from 5 to 10 times the trip rating across three per-pole dials for coordination with downstream devices. The trip unit is interchangeable and field-installable, so the frame can be re-rated later rather than replaced; a 400A KT3400T trip is available on request.

The breaker is HACR rated, calibrated at 40°C, suitable for reverse feed, and rated for single-phase AC circuits. For DC applications, use the two outside poles. Bolt-on mounting for Eaton Series C, Pow-R-Line 3a, and Pow-R-Line 4 panelboards, switchboards, and motor control centers. Made in U.S.A.

Lugs are not included. A TA400K lug kit is required for termination and is available separately. Reconditioned, inspected and tested to ESP Product Standards, and backed by a one-year operational guarantee.

What is "surplus new"?

Surplus new means the item has never been installed or put into service. It may not arrive in its original packaging, but it has never been used.

What does "reconditioned" mean?

Reconditioned items have been inspected, cleaned, and tested to confirm they operate to the manufacturer's original specifications. Every reconditioned item we sell carries a one-year operational guarantee.

How fast will my order ship?

In-stock orders placed before 12pm PST usually ship the same business day via UPS, with tracking provided.

What if I can't find the item I need?

Call 800-664-4377 — we stock thousands of obsolete and hard-to-find electrical parts that may not yet be listed online.
