Square D LAL36250 250A 3P 600V L-Frame Feed-Thru Circuit Breaker

Price: $795.00
  • SKUCM674D
In stock - 1 units available.
- +

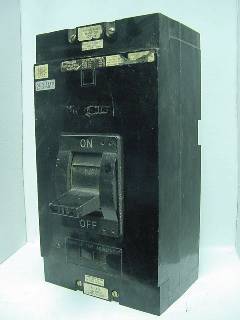

Square D LAL36250 Circuit Breaker

Stock photo shown for reference only. You will receive a unit of the listed catalog number in the condition stated above, inspected and tested to ESP Product Standards. Cosmetic appearance may vary.

1-Year Operational Guarantee Every breaker we sell — new, surplus, reconditioned, or used — is guaranteed to operate normally for one year from date of sale. Product Standards
Same-Day Shipping In-stock orders placed before 12pm PST typically ship the same business day, with UPS tracking provided. Shipping details
30-Day Returns Return authorization available within 30 days of receipt. Return policy
Talk to a Real Person Questions about fit, condition, or availability? Call 800-664-4377. Credit terms available for approved accounts.
Found this part for less somewhere else? Surplus and reconditioned prices vary widely with scarcity and condition — tell us what you found and make us an offer. Include the catalog number and we’ll respond same business day: call 800-664-4377 or email us. Every ESP unit is tested and backed by our 1-year operational guarantee — make sure you’re comparing like for like.

Description

Square D LAL36250 Specifications

ManufacturerSquare D / Schneider Electric
Catalog NumberLAL36250
FamilyLAL Series
TypeLAL — standard interrupting
FrameL Frame
Amperage250 A at 40°C
Voltage600V AC · 250V DC
Poles3-Pole
Phase3-Phase
MountingUnit mount, feed-thru
Trip functionThermal-Magnetic — LI (long-time and instantaneous), adjustable magnetic
Interrupting rating30 kA @ 480V AC — standard interrupting capacity
TerminalsLine and load side lug terminals
Dimensions11" H × 6" W × 5.84" D
Weight16.4 lb
StandardsUL 489 · CSA
ConditionReconditioned — 1-year operational guarantee

This unit is sold reconditioned, inspected and tested to ESP Product Standards, and guaranteed to operate normally for one year from the date of sale.

Feed-thru, not I-Line. The LAL mounts as a unit with lugs at both ends. The I-Line plug-on version at this rating is LA36250 — same frame, same rating, different catalog number, and it will not land in a bolt-on panelboard or vice versa. Check which one the panel takes before ordering.

The Square D L-frame is legacy product, replaced in current catalogs by the PowerPacT LJ series, which does not retrofit an L-frame opening. ESP stocks tested reconditioned L-frame units for panelboards and switchboards still in service.

More Details

Lugs at both ends is the whole distinction. A feed-thru breaker sits mid-run rather than at the end of a bus, which is why these turn up in older switchboards where the layout ruled out a plug-on device. The trap is the sibling. LA36250 is the I-Line version at the same 250-ampere rating, one letter away and not interchangeable in the panel. The magnetic element is adjustable, which matters wherever motor inrush and fault current sit close together. Reconditioned, one-year operational guarantee.

What is "surplus new"?

Surplus new means the item has never been installed or put into service. It may not arrive in its original packaging, but it has never been used.

What does "reconditioned" mean?

Reconditioned items have been inspected, cleaned, and tested to confirm they operate to the manufacturer's original specifications. Every reconditioned item we sell carries a one-year operational guarantee.

How fast will my order ship?

In-stock orders placed before 12pm PST usually ship the same business day via UPS, with tracking provided.

What if I can't find the item I need?

Call 800-664-4377 — we stock thousands of obsolete and hard-to-find electrical parts that may not yet be listed online.
