Square D FH16020C 20A 1P 277V F-Frame I-Line Breaker

Price: $145.00
  • SKUCM893D
In stock - 2 units available.
- +

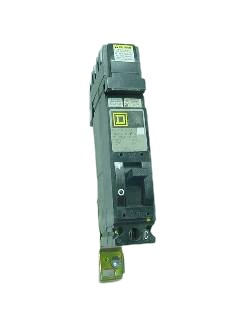

Square D FH16020C Circuit Breaker

Stock photo shown for reference only. You will receive a unit of the listed catalog number in the condition stated above, inspected and tested to ESP Product Standards. Cosmetic appearance may vary.

1-Year Operational Guarantee Every breaker we sell — new, surplus, reconditioned, or used — is guaranteed to operate normally for one year from date of sale. Product Standards
Same-Day Shipping In-stock orders placed before 12pm PST typically ship the same business day, with UPS tracking provided. Shipping details
30-Day Returns Return authorization available within 30 days of receipt. Return policy
Talk to a Real Person Questions about fit, condition, or availability? Call 800-664-4377. Credit terms available for approved accounts.
Found this part for less somewhere else? Surplus and reconditioned prices vary widely with scarcity and condition — tell us what you found and make us an offer. Include the catalog number and we’ll respond same business day: call 800-664-4377 or email us. Every ESP unit is tested and backed by our 1-year operational guarantee — make sure you’re comparing like for like.

Description

Square D FH16020C Specifications

ManufacturerSquare D / Schneider Electric
Catalog NumberFH16020C
TypeFH — high interrupting
FrameF Frame — 100 A frame type
Amperage20 A at 40°C
Voltage277V AC
Poles1-Pole
I-Line phasingC— the bus stabs this breaker lands on
MountingI-Line style plug-on
Trip functionThermal-Magnetic — fixed thermal and magnetic elements, LI
Interrupting rating25 kA @ 480V AC — high interrupting
TerminalsLoad end terminals
Tier comparisonFA/FAL clears 18 kA @ 480V · FH/FHL clears 25 kA · FC/FCL is current-limiting at 65 kA
Modern equivalentPowerPacT H16020
RatingHACR rated
Weight3.7 lb
StandardsUL 489 · CSA
ConditionReconditioned — 1-year operational guarantee

This unit is sold reconditioned, inspected and tested to ESP Product Standards, and guaranteed to operate normally for one year from the date of sale.

Three tiers and two mountings on one frame. FH is I-Line and lands on bus stabs; FHL is unit mount with lugs at both ends. On interrupting capacity the order is FA/FAL at 18 kA, FH/FHL at 25 kA and FC/FCL at 65 kA, all at 480 volts, all in the same case at the same ampere rating. The catalog number is the specification; the amperage tells nothing about which one are holding. The C suffix is the I-Line bus phasing - a 1-pole breaker lands on only some of the three stabs, so the phasing has to match the position.

The Square D F-frame is legacy product, crossed to the PowerPacT H and HG frames in current catalogs, which require a panel change rather than a swap. ESP stocks tested reconditioned F-frame units across all three interrupting tiers and both mountings.

More Details

Twenty amperes, single pole, 277 volts, I-Line plug-on landing on phase C. The A and B versions are separate catalog numbers at the same rating. ESP stocks the A. Twenty-five kiloamperes at 480 volts in the FH tier.

What is "surplus new"?

Surplus new means the item has never been installed or put into service. It may not arrive in its original packaging, but it has never been used.

What does "reconditioned" mean?

Reconditioned items have been inspected, cleaned, and tested to confirm they operate to the manufacturer's original specifications. Every reconditioned item we sell carries a one-year operational guarantee.

How fast will my order ship?

In-stock orders placed before 12pm PST usually ship the same business day via UPS, with tracking provided.

What if I can't find the item I need?

Call 800-664-4377 — we stock thousands of obsolete and hard-to-find electrical parts that may not yet be listed online.
