Westinghouse JB3100W 100A 3P 600V JB J-Frame Circuit Breaker

Price: $545.00
  • SKUCM954C
In stock - 1 units available.
- +
Cutler-Hammer Dist Equip JB3100W Circuit Breaker

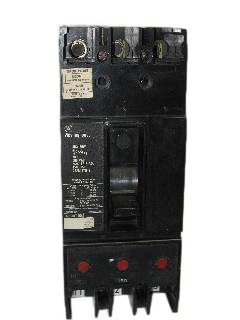

Stock photo shown for reference only. You will receive a unit of the listed catalog number in the condition stated above, inspected and tested to ESP Product Standards. Cosmetic appearance may vary.

1-Year Operational Guarantee Every breaker we sell — new, surplus, reconditioned, or used — is guaranteed to operate normally for one year from date of sale. Product Standards
Same-Day Shipping In-stock orders placed before 12pm PST typically ship the same business day, with UPS tracking provided. Shipping details
30-Day Returns Return authorization available within 30 days of receipt. Return policy
Talk to a Real Person Questions about fit, condition, or availability? Call 800-664-4377. Credit terms available for approved accounts.
Found this part for less somewhere else? Surplus and reconditioned prices vary widely with scarcity and condition — tell us what you found and make us an offer. Include the catalog number and we’ll respond same business day: call 800-664-4377 or email us. Every ESP unit is tested and backed by our 1-year operational guarantee — make sure you’re comparing like for like.

Description

Westinghouse JB3100W Specifications

ManufacturerWestinghouse / Eaton / Cutler-Hammer
Catalog NumberJB3100W
TypeJB · AB De-ion — standard interrupting
FrameJ Frame
Amperage100 A at 40°C
Voltage600V AC
Poles3-Pole
Phase3-Phase
MountingBolt-On / Fixed
Trip functionThermal-Magnetic — interchangeable trip unit, LI
TerminalsW suffix — supplied with lug terminals
AccessoriesShunt trip and auxiliary switch are field-installable
Weight11 lb
StandardsUL 489 · CSA
ConditionReconditioned — 1-year operational guarantee

This unit is sold reconditioned, inspected and tested to ESP Product Standards, and guaranteed to operate normally for one year from the date of sale.

Watch the suffix on this family. JB3100W is a circuit breaker supplied with lugs. JB3100NW, with an N, is a non-automatic switch on the same frame — no trip, no overcurrent protection. Two characters apart and not interchangeable in function. The high-interrupting breaker version is HJB.

The Westinghouse AB De-ion frames are obsolete with no modern drop-in equivalent. ESP stocks tested reconditioned units for legacy Westinghouse and Cutler-Hammer panelboards, switchboards and motor control centers still in service.

More Details

Westinghouse used one J-frame case for several very different devices, and the suffix is what tells them apart. A W is a breaker with lugs. An NW is a non-automatic switch that will not trip on anything. That is worth knowing before ordering by amperage alone, because a 100-amp JB and a 100-amp JB non-automatic look identical in a bin and behave nothing alike in a panel. The trip element is interchangeable, so read it rather than the case. Obsolete with no drop-in successor. Reconditioned, tested, one-year operational guarantee.

What is "surplus new"?

Surplus new means the item has never been installed or put into service. It may not arrive in its original packaging, but it has never been used.

What does "reconditioned" mean?

Reconditioned items have been inspected, cleaned, and tested to confirm they operate to the manufacturer's original specifications. Every reconditioned item we sell carries a one-year operational guarantee.

How fast will my order ship?

In-stock orders placed before 12pm PST usually ship the same business day via UPS, with tracking provided.

What if I can't find the item I need?

Call 800-664-4377 — we stock thousands of obsolete and hard-to-find electrical parts that may not yet be listed online.
